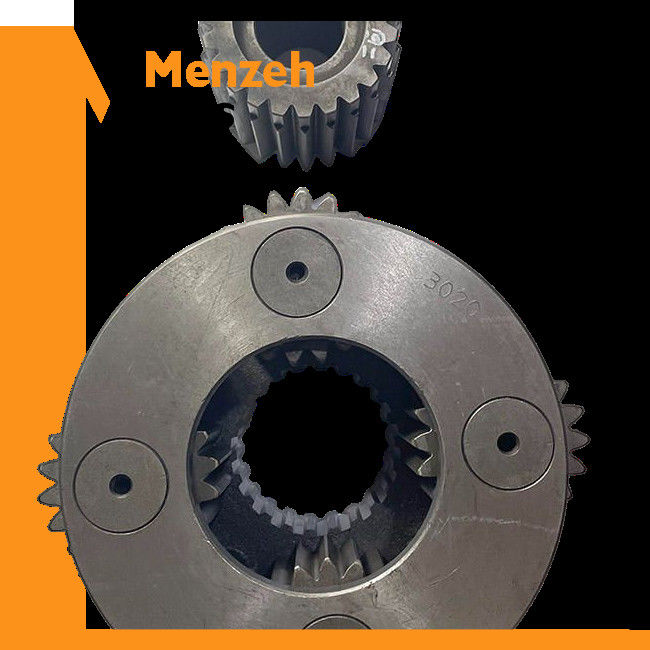

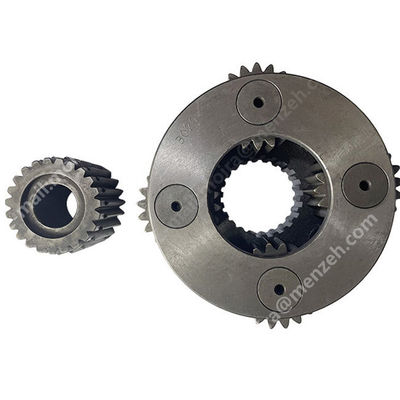

KRC10440 LDM0188 SH200-5 SH210-5 CX210B CX210C CX220C Excavator Prat Second Sun gear Carrier Assy

KRC10440 LDM0188 SH200-5 SH210-5 CX210B CX210C CX220C Excavator Prat Second Sun gear Carrier Assy

  • KRC10440 LDM0188 SH200-5 SH210-5 CX210B CX210C CX220C Excavator Prat Second Sun gear Carrier Assy
  • KRC10440 LDM0188 SH200-5 SH210-5 CX210B CX210C CX220C Excavator Prat Second Sun gear Carrier Assy
KRC10440 LDM0188 SH200-5 SH210-5 CX210B CX210C CX220C Excavator Prat Second Sun gear Carrier Assy
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: KRC10440 LDM0188 SH200-5 SH210-5 CX210B CX210C CX220C
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Carrier Part Number: KRC10440 LDM0188
Used For: SH200-5 SH210-5 CX210B CX210C CX220C Condiction: All New
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR
Port: Huangpu After Warranty Service: Online Support Spare Parts
High Light: KRC10440 LDM0188 SH200-5 SH210-5 CX210B CX210C CX220C Excavator Prat Second Sun Gear Carrier Assy

KRC10440 LDM0188 SH200-5 SH210-5 CX210B CX210C CX220C Excavator Prat Second Sun gear Carrier Assy



Part Name Sun gear Carrier Assy
Part No. KRC10440 LDM0188
Used For SH200-5 SH210-5 CX210B CX210C CX220C
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
1 7Y-0752 B [1] SHIM (0.8-MM THK)
  7Y-0753 B [1] SHIM (1-MM THK)
  7Y-0754 B [1] SHIM (1.6-MM THK)
4 094-0578 [1] PLATE (8-MM THK)
5 094-0579 [1] PLATE (9-MM THK)
6 094-0580 [1] PLATE (10-MM THK)
7 094-1528 [12] WASHER (53X84X1-MM THK)
8 114-1540 [4] PIN-DOWEL
9 169-5589 [1] GEAR-SUN (24-TEETH)
10 169-5590 [1] GEAR-SUN (24-TEETH)
11 169-5592 [3] GEAR-PLANETARY (23-TEETH)
12 169-5593 [3] GEAR-PLANETARY (23-TEETH)
13 169-5601 [3] SHAFT-PLANETARY
14 169-5602 [3] SHAFT-PLANETARY
15 171-9387 [1] GEAR-RING (64-TEETH)
16 191-2571 [1] CARRIER-PLANETARY
17 191-2676 [1] GEAR-RING (72-TEETH)
18 191-2683 [1] GEAR-SUN (20-TEETH)
19 191-2684 [3] GEAR-PLANETARY (21-TEETH)
20 191-2686 [1] CARRIER AS
  191-2687 [3] RACE-BEARING
21 191-2689 [3] WASHER (34X70X1-MM THK)
22 191-2690 [3] WASHER (42.3X70X1-MM THK)
23 199-4503 [1] COVER
24 207-1571 [1] SEAL GP-DUO-CONE
  214-3570 [2] RING-TORIC
25 267-6798 [1] HOUSING
26 267-6799 [1] CARRIER-PLANETARY
27 267-6800 [1] GEAR-COUPLING
28 267-6863 B [1] SHIM (0.75-MM THK)
  267-6864 B [1] SHIM (0.85-MM THK)
  267-6865 B [1] SHIM (0.9-MM THK)
  267-6866 B [1] SHIM (0.95-MM THK)
  267-6867 B [1] SHIM (1.2-MM THK)
  267-6868 B [1] SHIM (1.4-MM THK)
  267-6869 B [1] SHIM (1.8-MM THK)
  267-6870 B [1] SHIM (2-MM THK)
  267-6871 B [1] SHIM (2.3-MM THK)
37 296-6248 [3] BEARING AS-ROLLER
38 333-2914 [2] BALL BEARING
39 333-2916 [3] BEARING AS
40 333-2917 [6] BEARING AS
41 367-8276 [1] HOUSING-MOTOR
42 093-1731 [2] RING-RETAINING
43 095-0891 [6] PIN-SPRING
44 096-0433 [3] RING-RETAINING
45 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
46 171-9298 [1] SEAL-O-RING
47 179-8733 M [16] BOLT (M20X2.5X170-MM)
48 3E-2338 [2] PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
49 7M-8485 [2] SEAL-O-RING
50 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
51 7Y-5217 M [16] BOLT-SOCKET HEAD (M20X2.5X70-MM)
52 8T-3282 [16] WASHER-HARD (22X35X3.5-MM THK)
53 451-2176 [16] WASHER-HARD (22X35X3.5-MM THK)
54 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)

  1U-8846 BF   SEALANT-GASKET
  B   USE AS REQUIRED
  F   NOT SHOWN
  M   METRIC PART



KRC10440 LDM0188 SH200-5 SH210-5 CX210B CX210C CX220C Excavator Prat Second Sun gear Carrier Assy 0



KRC10440 LDM0188 SH200-5 SH210-5 CX210B CX210C CX220C Excavator Prat Second Sun gear Carrier Assy 1

KRC10440 LDM0188 SH200-5 SH210-5 CX210B CX210C CX220C Excavator Prat Second Sun gear Carrier Assy 2KRC10440 LDM0188 SH200-5 SH210-5 CX210B CX210C CX220C Excavator Prat Second Sun gear Carrier Assy 3







FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
